Can I get a picture of the heating tubes with ingress and egress clearly marked?

[AfroRenault4]

I'm in the process of changing the heating matrix and like a dumb dumb I never took any pictures.

Thanks!



[laxeian]

Matrix side should follow, small white bleed valve coming out of bulkhead should be at top of heater matrix when installed, pipe form/position should be easy from that, although from memory you could do with triple jointed wrists to make it easier matrix side



[AfroRenault4]

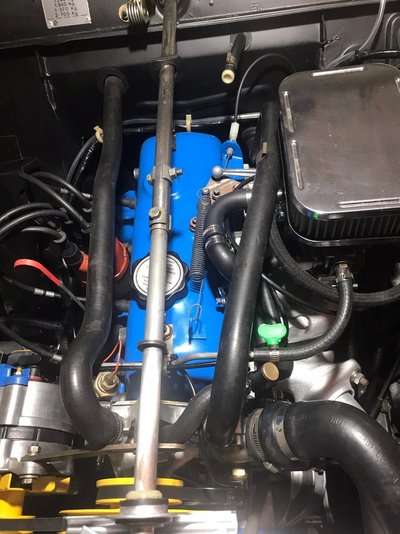

View attachment 30856
Matrix side should follow, small white bleed valve coming out of bulkhead should be at top of heater matrix when installed, pipe form/position should be easy from that, although from memory you could do with triple jointed wrists to make it easier matrix side

That's a wonderful engine color. Thank you very much!
