Drivers handbook

E

edwin

Enthusiast
Messages
889
Location
Lichfield
Hi all. Anyone got a drivers handbook for a 72 base R4 1126, 782cc. with a heater that I could buy or copy.

edwin said:
Hi all. Anyone got a drivers handbook for a 72 base R4 1126, 782cc. with a heater that I could buy or copy.
Click to expand...
Hi Edwin
There's a French handbook from 1971 here:

I'm pretty sure I've got a 1972 English handbook - obviously it'll only cover the UK spec versions. Not much detail in them, but I'm happy to send you any pages you need.
Is there a problem with the heater on your car?

Andy McGhee said:
Hi Edwin
There's a French handbook from 1971 here:

I'm pretty sure I've got a 1972 English handbook - obviously it'll only cover the UK spec versions. Not much detail in them, but I'm happy to send you any pages you need.
Is there a problem with the heater on your car?
Click to expand...
Hi Andy and thanks for the email. I have just got back my 1972 R4 from Paul Cunningham after him getting it going after a 20 year + hibernation. I now have a 1 year MOT with NO ADVISORIES and the car go's ! ! I had never driven it until day before yesterday, and all I can say is its fab! I have an 85 TL in France which I have learnt how to get around. However, this car is rather different and I dont know with confidence what everything does. The heater is a case in point. So I thought that the basic driver handbook might tell me . The english one would be most helpful, if you could photocopy it, and I would be very please to cover any costs for your for your time and printing costs and postage .
I have an earlier handbook for the MK1 car and a later one for the car I have in France, and the Haynes does not tel you. Thank you again, Edwin

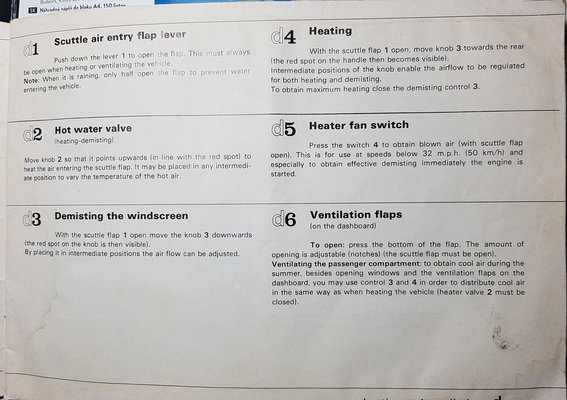

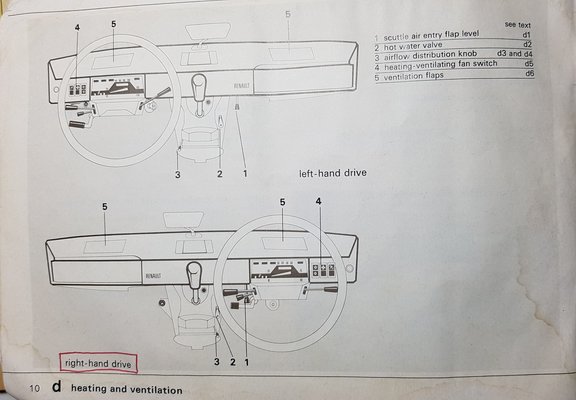

Here are the heating/ventilation pages from the 1972 English manual - it came with a TL I had 30 years ago!
Congratulations on the MOT pass!

edwin said:
Thats great Andy, thank you. Cant print it off though. Any chance of posting a copy to me, or email direct edwinodesign@icloud.com
Click to expand...
The easiest way would be for me to WhatsApp them to you - can you pm me your number?
By the way, you can print files from this website by clicking on them and then downloading them.

Andy McGhee said:
The easiest way would be for me to WhatsApp them to you - can you pm me your number?
By the way, you can print files from this website by clicking on them and then downloading them.
Click to expand...
Hi Andy. I downloaded them and printed then, as you suggested and it worked. Thank you for teaching me new tricks, and for the pages. And i am an old dog.
