gearbox front mount

[orsome]

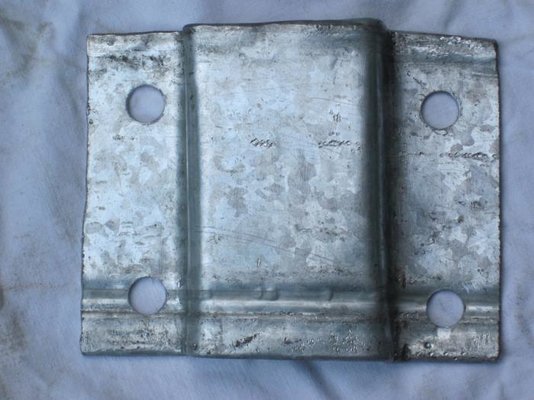

I did purchase new mount/support which i found missing.
Did not solve my problem, now i am missing the counterpart to be bolted to front crossover beam.

Any better photos anyone(i am gonna make the piece myself):eek:

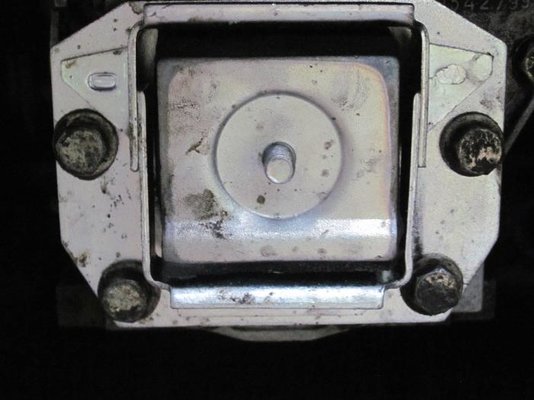

i'll enclose some phtos showing my tasks

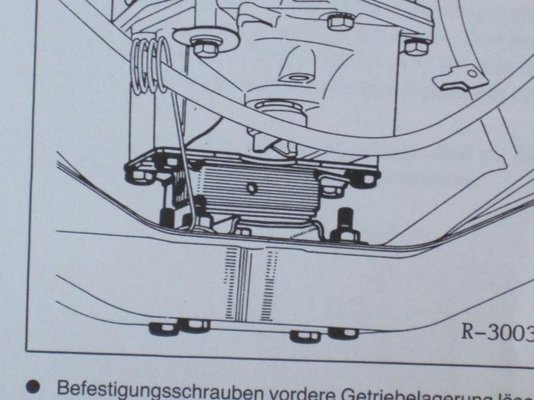

1)photo taken from service book

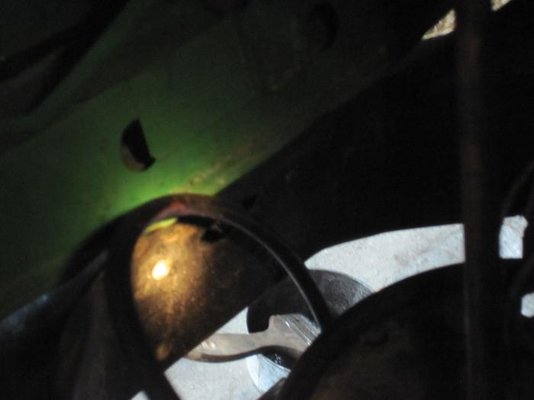

2)photo taken from the front beam

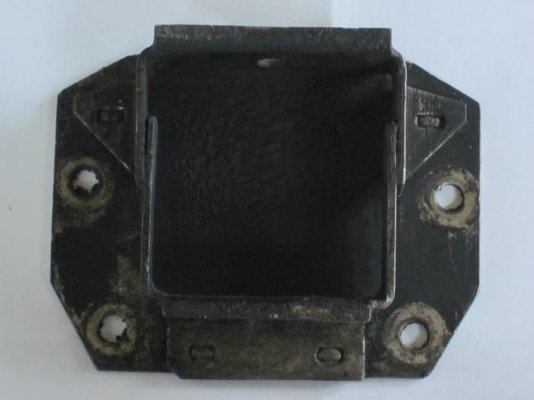

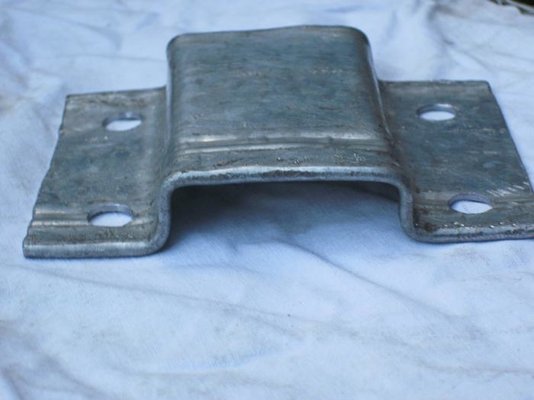

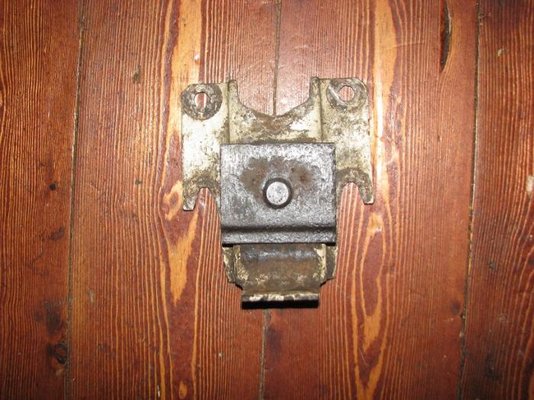

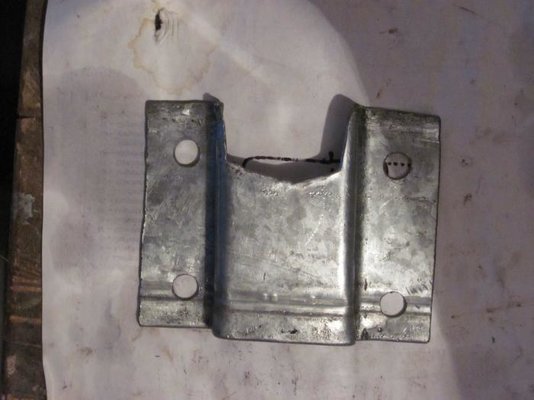

3-4)old and new supports



[orsome]

hole position on gear box front mount?

I did make the counterpart for support which purchased.

I estimated the gap needed (to fix the nut) but dont know shall the srew pin to be located in the centre or what, it makes a diffrence to gear box level

i'll enclose some photos showing my tasks



[orsome]

gearbox mount

I did make the counterpart for support which purchased.

I estimated the gap needed (to fix the nut) but dont know shall the srew pin to be located in the centre or what, it makes a diffrence to gear box level

i'll enclose some photos showing my tasks

now i made a space for the start-up crank hole, still missing information on what level to bore the dole-could someone take a photo so that gear box bottom level is seen compared to front cross beam underside(if your sump protection plate is iff)



[alewis]

Better than that - i will take a photo and measurements of the one off my van.



[orsome]

many thaks for y alewis

Better than that - i will take a photo and measurements of the one off my van.

many thaks for y alewis



[DavidN]

Unfortunately the best pic I could find:



[barnfind]

now i made a space for the start-up crank hole, still missing information on what level to bore the dole-could someone take a photo so that gear box bottom level is seen compared to front cross beam underside(if your sump protection plate is iff)

Hi
I am working on the car this afternoon, I'll try and take a photo.
Bryan



[alewis]

Photo !
I would replicate the lip at the bottom as well - as I think this lip is designed to support the gearbox when the front mount snaps mine was any way !



[orsome]


Photo !
I would replicate the lip at the bottom as well - as I think this lip is designed to support the gearbox when the front mount snaps mine was any way !

Tremendous !

Many thanks alewis
