Handbrake mechanism

[Tripyrenees]

Hi
Got several jobs on at the moment and just waiting for the parts to arrive.
One of those is the handbrake mechanism - it basically had no cables when I bought it and the mechanism looks a little "bodged"

Can any one take a photo of what theirs looks like for me. Mine is a 1982/3 4TL and I have two cables going down to the front drums. I just need to see how these are connected at the lever end (in the engine bay).
Thanks
Ian



[Bertl]

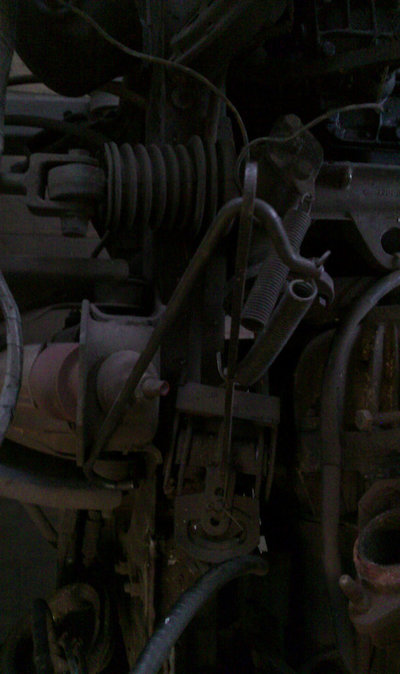

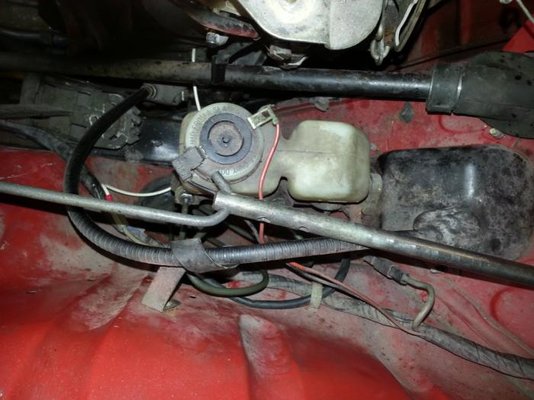

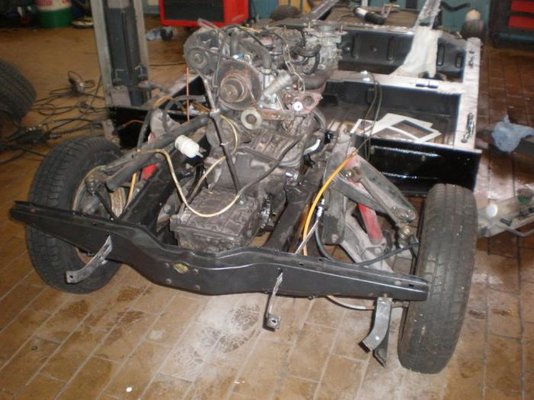

Like this? Or do you need pix of the cabling towards the drums?



[Tripyrenees]

My car only had one cable fitted - I am assuming it should have both left and right (front) cables fitted.

I can only see on in the photo.

The top lever dangling down - does that go to the handbrake rod (into the car) ?



[Bertl]

My car has two cables, one for each front wheel. The "bracket" you see dangling in the first picture connects to the handbrake lever coming from the inside of the car.



[mojobaby]

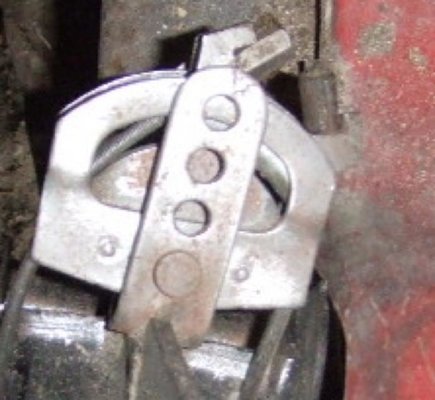

Here's a closer look at the bracket where the ends of the cable join
