334 gearbox synchromesh rings

[Renault Mac]

Hi Everybody
Does anyone know if it is possible to get hold of 1st and 2nd gear synchro rings for the 334-04 four speed box in my R4? If so where from?
Regards
Mac



[Andy McGhee]

Hi Everybody
Does anyone know if it is possible to get hold of 1st and 2nd gear synchro rings for the 334-04 four speed box in my R4? If so where from?
Regards
Mac

I don't know if you've got this, but it'll be useful (it's a lot easier to start with a part number):



[Andy McGhee]

If 04 28 818 600 is one of the parts you need (please double-check!), here are some leads:

SYNCHRO BOITE DE VITESSES TYPE 334 RENAULT R4 R6 RODEO

Synchro de boite de vitesses pour RENAULT. Référence d'origine (OEM) RENAULT : 04 28 818 600. Pièces d'origine à quantité limité.

www.melun-retro-passion.com

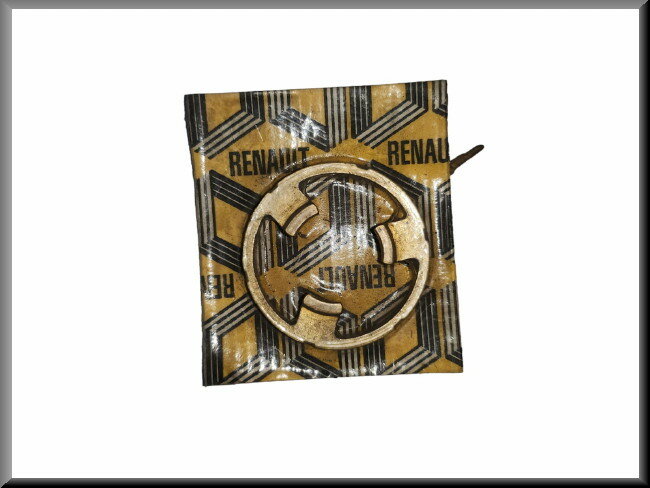

Synchro ring 2nd gear for Renault 4-6.

Synchro ring 2nd gear for Renault 4-6. Part number: 0428818600. Click on the picture for images from the P.R. book.

www.renault16shop.com



[malcolm]

I didn't think 1st gear had synchro. Mine doesn't seem to while my 2nd gear feels like it used to have synchro.



[Renault Mac]

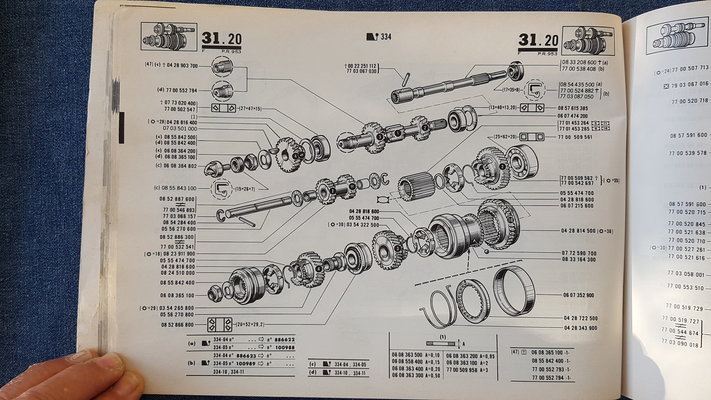

Hi Andy, looking at the exploded diagram of the 334 gearbox internals the synchro rings all appear to have the same part number 042818600. Does this make sense that they should be identical. Any comments welcome.
Thanks Malcolm (and cat) for identifying a supplier.
Regards
Mac



[Renault Mac]

Hi Andy, looking at the exploded diagram of the 334 gearbox internals the synchro rings all appear to have the same part number 042818600. Does this make sense that they should be identical. Any comments welcome.
Thanks Malcolm (and cat) for identifying a supplier.
Regards
Mac

Apologies Andy, it was you who identified stockists.
Mac



[dg]

2,3 and 4 are identical. I was unable to get 1st when I did mine - you would probably need 06 07 352 900 as well.
David



[Andy McGhee]

One here:

Renault 4 6 Transimission Needle Cage – Cage Anneau – 0607352900 | Vintage French Car Parts

Transimission Needle Cage - Cage Anneau for Renault 4 6 Brand New Original Renault Product.Made in France. Part Number: 0607352900023 Driveshaft –MainShaft - Pinions – Synchonizer

www.vfrenchcarparts.com



[Renault Mac]

Thanks for your help, I’ve ordered parts, we’ll see what turns up!
Mac
